Electric Bike Setup for a 70cc Bike: A Complete Guide

Electric bikes have become a popular mode of transportation for eco-conscious riders and those looking for efficient, cost-effective travel solutions. With advancements in electric bike technology, riders can now convert their traditional vehicles, such as 70cc bikes, into electric-powered machines. In this article, we will walk you through the process of setting up an electric bike for a 70cc bike, exploring the benefits, necessary components, and steps involved.

Why Convert a 70cc Bike to an Electric Bike?

Converting a 70cc bike into an electric bike offers a range of benefits that enhance the performance, usability, and versatility of your existing bike.

1. Eco-Friendly Transportation

One of the main advantages of switching to an electric setup is its environmentally friendly nature. Unlike gas-powered engines, electric bikes produce no harmful emissions, making them a greener option for both short commutes and long-distance travel.

2. Cost Efficiency

Electric bikes are generally cheaper to maintain than their gasoline-powered counterparts. By converting your 70cc bike into an electric model, you’ll significantly reduce fuel costs, and electric motors typically require less maintenance than combustion engines.

3. Increased Range and Versatility

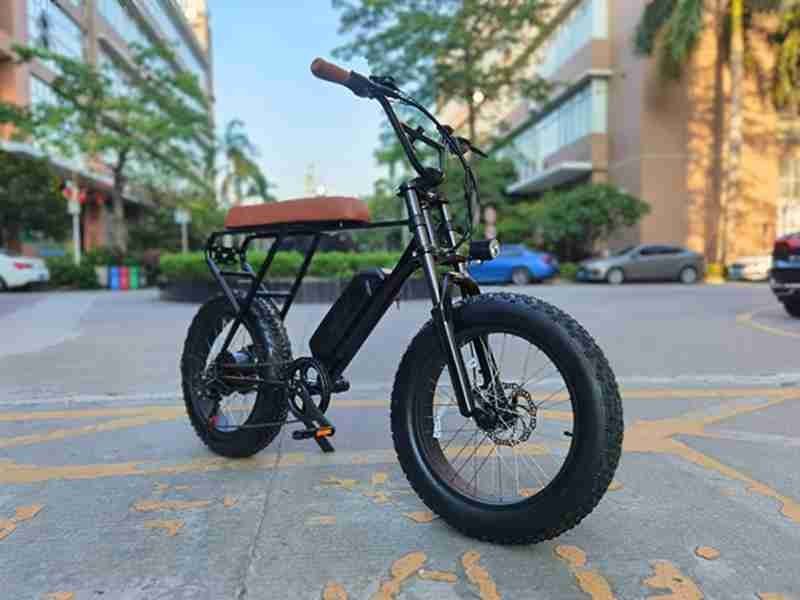

Electric bikes are ideal for long-distance travel, especially when using larger batteries that can extend your range. With a variety of models available¡ªlike 20-inch fat tires, 26-inch snow bikes, and 29-inch city bikes¡ªyou can customize your ride to suit the terrain and distance you need to cover.

4. Quiet Operation

An electric motor operates more quietly than a gas engine, providing a more pleasant riding experience for both you and the people around you. Whether riding in urban environments or remote trails, the reduced noise pollution is a significant perk.

Key Components for an Electric Bike Conversion

Converting a 70cc bike into an electric-powered vehicle requires certain components that will integrate seamlessly into your current setup. Below are the essential parts needed for the conversion.

1. Electric Motor

The electric motor is the heart of the conversion. You’ll need a motor that is powerful enough to replace the 70cc engine, but also compact and lightweight for easy installation. Common options include hub motors and mid-drive motors, with hub motors being easier to install while mid-drive motors offer better power distribution.

2. Battery

The battery is what powers your motor, so choosing the right type and capacity is crucial. Lithium-ion batteries are the most popular choice due to their long life, lightweight nature, and ability to store significant amounts of energy. For long-distance travel, opt for a battery with a higher amp-hour (Ah) rating, which will give you extended range.

3. Controller

The controller acts as the brain of the electric bike, regulating the power flow from the battery to the motor. Ensure that your controller is compatible with both the battery and motor to avoid any performance issues. Most controllers come with throttle and pedal-assist functions for added versatility.

4. Throttle and Pedal Assist

A throttle allows you to control the speed of the electric motor without pedaling, giving you complete control over your ride. Pedal assist, on the other hand, provides a boost when you pedal, making it easier to ride uphill or cover longer distances without exhausting yourself.

5. Display

A display unit will give you real-time information about your bike¡¯s performance, such as speed, battery level, and distance traveled. This helps you monitor your ride and make adjustments as needed.

6. Mounting Brackets

Mounting brackets and kits are needed to secure the electric motor and battery to your bike. These should be chosen based on the size and model of your 70cc bike to ensure a secure fit.

Step-by-Step Guide to Setting Up an Electric Bike for a 70cc Bike

Now that you understand the components needed for an electric bike conversion, let’s dive into the step-by-step process of setting up an electric bike for your 70cc bike.

1. Remove the Gas Engine

The first step is to remove the 70cc gas engine from your bike. This process will vary depending on your bike¡¯s make and model, but it typically involves unscrewing and detaching the engine from the frame. Make sure to disconnect all fuel lines and throttle cables.

2. Install the Electric Motor

Next, mount the electric motor in the space where the 70cc engine was previously installed. If you’re using a hub motor, you will need to replace the rear or front wheel with the motorized hub. For mid-drive motors, install them at the bike¡¯s bottom bracket, which is located between the pedals.

3. Mount the Battery

Install the battery securely on your bike’s frame, typically on the downtube or rear rack. Make sure it is well-balanced to avoid affecting the bike¡¯s handling. Some models may require special brackets or battery cases for a stable fit.

4. Connect the Controller

Mount the controller close to the motor and battery, ensuring all wires are properly connected. The controller regulates the power output, so it’s essential to follow the manufacturer¡¯s instructions for wiring to prevent malfunctions.

5. Install Throttle and Pedal Assist

Attach the throttle to the handlebars for easy access during your ride. For pedal-assist systems, install the sensor near the bike¡¯s pedals. Both systems allow you to control how much electric power is used during your ride.

6. Mount the Display

Install the display on the handlebars where it can be easily seen during the ride. This unit will provide vital information such as speed, battery charge, and distance, helping you manage your bike¡¯s performance effectively.

7. Test the Bike

Once all components are installed, it’s time to test the bike. Make sure the motor and battery are functioning properly, and that the throttle and pedal assist are responsive. Perform a short ride to ensure everything works smoothly.

Conclusion

Converting your 70cc bike into an electric bike can significantly improve its performance, range, and overall functionality. By following the steps outlined in this guide and selecting the right components, you’ll have a versatile, eco-friendly vehicle capable of handling various terrains and long-distance journeys. Whether you opt for a lightweight 14-inch folding model or a robust 29-inch city bike, the electric setup will breathe new life into your 70cc bike.
